Perfectly Warm Radiant Ceiling Heat

Radiant Ceiling Heat – Primary Heating

Calorique’s Perfectly Warm Radiant Ceiling Heat warms your room, furnishings and occupants – comfortably and naturally. It has been designed to provide the ultimate in thermal comfort for you and your family. One room or an entire house will benefit.

Radiant Ceiling Heat is the same type of natural heat that warms you just like the sun on a cool spring day. Although the air is cool, the radiant heat from the sun keeps you warm.

Easy to install and Low Operating Costs are what makes our systems so attractive. This primary heating system provides uniform heat distribution and is easily installed by stapling to the underside of the ceiling joists and is an ultra- high energy efficient system which is 100 % efficient! Radiant Ceiling Heat is available in rolls.

A Safe, Silent and Maintenance Free product which doesn’t circulate airborne allergens, plus a 25 Year Limited Warranty, along with ease of installation makes Perfectly Warm Radiant Ceiling Heat the ideal selection for your home or office. Whether it’s primary or supplemental heat, new construction or renovation retro-fit, Calorique’s Perfectly Warm Radiant Ceiling Heat is the clear choice. Manufactured in the USA and UL Certified.

Features:

  • World’s most affordable radiant heat system to install and operate
  • Heating panels are UL Listed and EMC Compliant
  • Lower operating temperatures and fast warm-up time
  • 100% efficient due to 100% of energy being converted directly into heat
  • Easy and Fast Installation
  • No maintenance required, no moving parts
  • No moving air helps prevent circulation of mold spores, mites and other allergens
  • 25 Year Limited Warranty





Product Description Length Width Volts Watts Amps
RCH13P13W240V heating element designed for ceiling joists with 12″ on center staple up installation 12.6″ 13″ 240V 13 0.054
RCH17P17W240V heating element designed for ceiling joists with 16″ on center, staple up installation 12.6″ 17″ 240V 17 0.071
RCH25P25W240V heating elelment designed for ceiling joists with 24″ on center staple up installation 12.6″ 25″ 240V 25 0.104
RCH13P13W240V250 Panel Roll of heating element designed for ceiling joists with 12″ on center staple up installation 263′ 13″ 240V 3250 13.54
RCH17P17W240V250 250 Panel Roll of heating element designed for ceiling joists with 16″ on center staple up installation 263′ 17″ 240V 4250 17.71
RCH25P25W240V250 250 Panel Roll of heating element designed for ceiling joists with 24″ on center staple up installation 263′ 25″ 240V 6250 26.04

RCH2016 Installation Manual

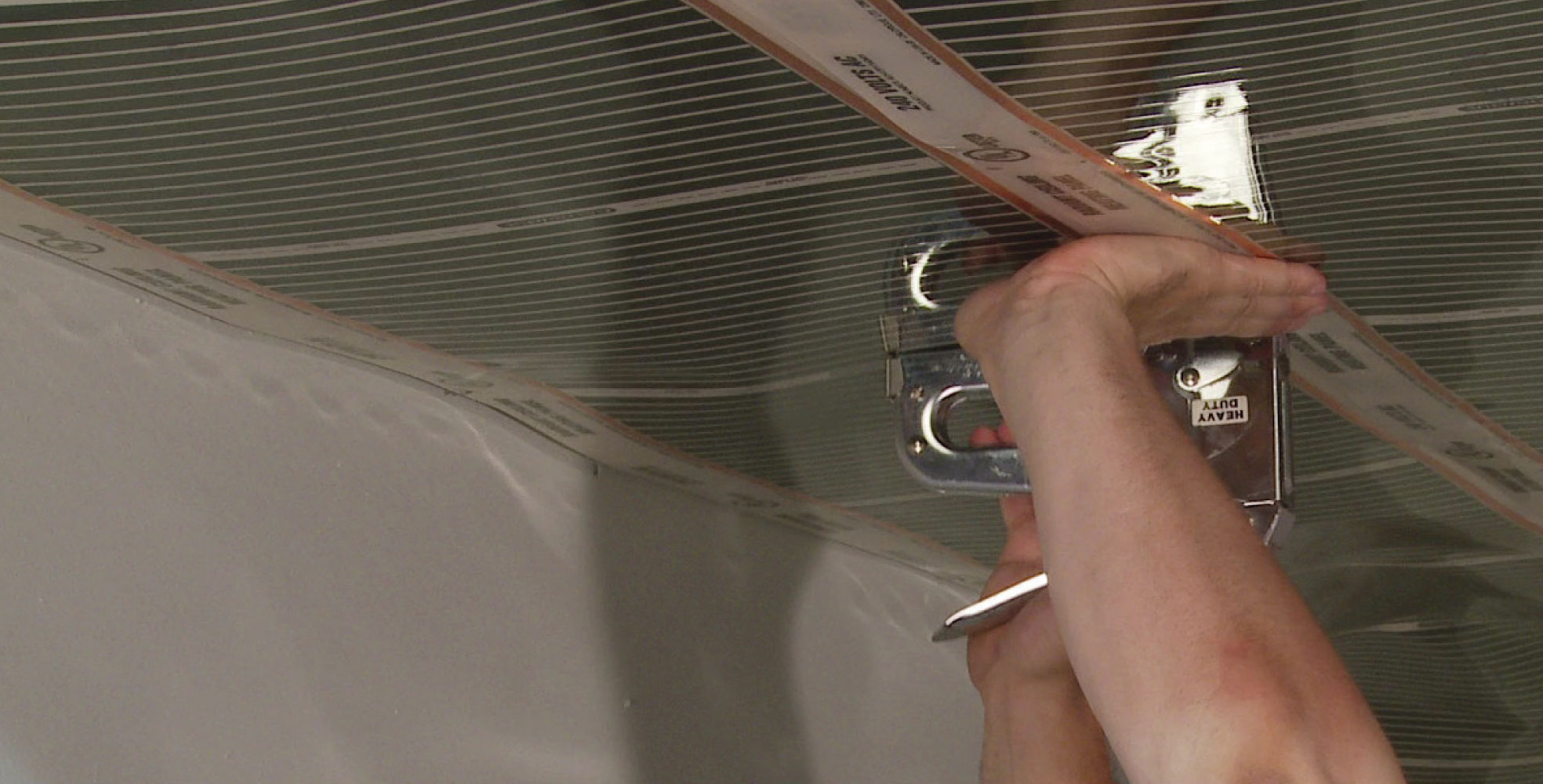

Step 1:

Radiant Ceiling heat

easy staple-up

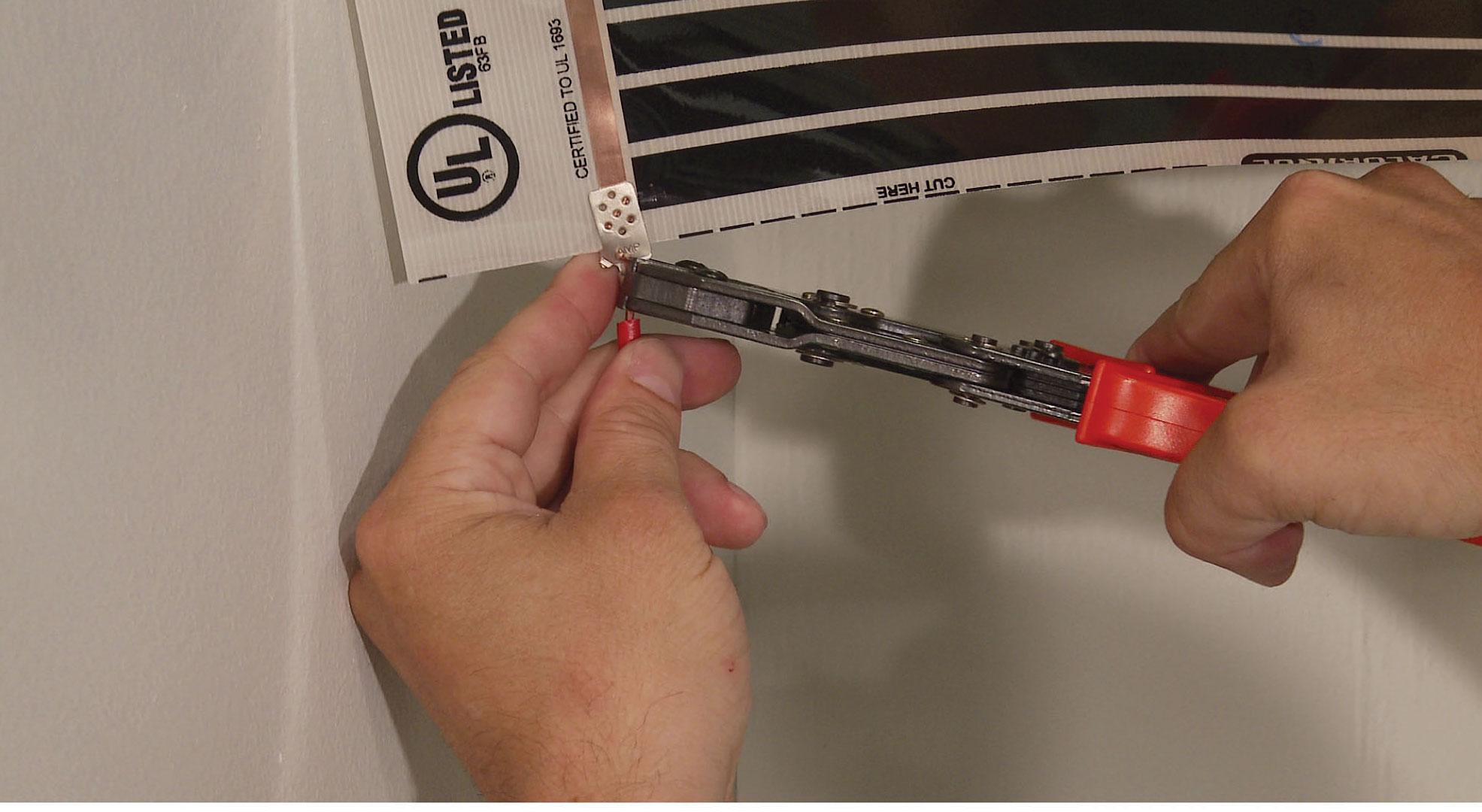

Step 2:

easy crimp connections
HOLD

SKU Product Description Type Length
ACC-25 Connectors & Insulators 25 each Set n/a
ACC-50 Connectors & Insulators 50 each Set n/a
FCT-104A Crimp Tool Calibrated Crimp Connections Hand tool n/a
ACC-50-240V Electrical Wire Red and Black UF, 12 ga single conductor 50′ Red 50′ Black
ACC-100-240V Electrical Wire Red and Black UF,12 ga single conductor 100′ Red, 100′ Black
TST-ADG-4999 Thermostat OJ Electronics Programmable n/a
TST-UDG-4999 Thermostat OJ Electronics for bathrooms and wet areas only Programmable n/a
ASG-4000 Power Module for excess Amperage over 15 OJ Electronics with built in EGFPD n/a

UDG UCG User Manual
UDG Thermostat User Manual
ADG ACG User Manual
ADG-Thermostat User Manual

Dispelling 10 Myths About Radiant Ceiling Heat

Myth No.1: Radiant Ceiling Heat is brand new technology.

Surprisingly, Radiant Ceiling Heat is not new to the heating industry. Ceiling heat has been around for decades and has proven to be a reliable, efficient and luxurious heating product installed in homes around the world. Many people in the United States are simply unfamiliar with the technology or have many misconceptions which we hope to help dispel. Since 1980, original installations of Calorique Perfectly Warm Ceiling Heat are still operating flawlessly in homes today. Calorique Ceiling Heat offers a 25 Year Limited Warranty.

Myth No.2: Radiant Ceiling Heat is Not Efficient

A popular size of Calorique Radiant Ceiling Heat delivers 15.24 watts of heat per square foot. Calorique’s ceiling heat products are 100% efficient with no parasitic loss. According to the Department of Energy, “Radiant heating has a number of advantages. It is more efficient than baseboard heating and usually more efficient than forced-air heating because it eliminates duct losses.” Calorique US Ceiling Heat delivers the following Watts Per square foot:

12” on center, 240V = only 17.83 Watts per Sq. Ft.
16” on center, 240V = only 15.24 Watts per Sq. Ft.
24” on center, 240V = only 13.77 Watts per Sq. Ft.
16” on center, 208V = only 15.24 Watts per Sq. Ft.

MYTH No. 3: Ceiling Heat is Not as Comfortable as Other Heating Methods

It is a common misunderstanding that “heat rises” and so ceiling heat can make you think twice. The answer may surprise you, but it is quite simple Radiant Ceiling Heat such as Calorique Perfectly Warm Ceiling Heat works much like sunshine. Radiant Ceiling Heat warms objects in the room unlike conventional baseboard which heats the air and rises. Radiant Heat takes the path of least resistance. Heat automatically conducts to “cold” so a good insulation is utilized to direct the heat into the required space. Ceiling heat is a superior choice for a Whole House Primary Heating System. It literally feels like sunshine. You feel warmer faster and Radiant Ceiling Heat also eliminates hot and cold spots because it is more evenly distributed. Other conventional heating systems cause inconsistencies which relate to less comfort.

Radiant heating systems are designed to match the heat loss of a human body in a way not possible by any other form of heating. Radiant Heating provides more comfort than the “hot/cool breezes” often associated with a forced-air system.

Myth No.4: Radiant Ceiling Heat Panels take longer to produce heat

Unlike other types of radiant heating systems, Perfectly Warm Radiant Ceiling Heat Panels have the quickest response time of any heating technology. Response time is measured by the amount of time it takes to make the occupant “comfortable.” In many cases radiant heating systems provide a faster response time than any other forms of heating.

Myth No.5: Because warm air rises, baseboard heating must be better than radiant ceiling heat panels.

Not true at all. Think of this. On a bright day, you can feel the sun’s warmth when standing in sunlight, yet feel cooler when standing in the shade. The air temperature actually remains the same, but heat shining down from above flows towards cooler objects, warming them directly and is evenly distributed. Calorique uses low levels of warmth to heat your room and its occupants, just like the sun – comfortably, efficiently and naturally. Ceiling heat travels in the direction it is pointed, in this case downward. With Radiant Ceiling Heat, there are no obstructions to block the heat unlike other conventional heating methods.

Myth No.6: Radiant Ceiling Heat is Expensive to Operate.

When both air temperature and radiant transfer are compensated for, you feel comfortable at lower room air temperatures therefore saving you money. Individual thermostat controls allow you to turn down heat in unused rooms. People generally spend 80% of their time in just 20% of their rooms. Energy savings also comes from lower overall thermostat settings. Heat loss from any building is driven by the temperature difference between the inside of the structure and the outside. Conventional systems locate registers along outside walls and under windows to compensate for cold surfaces. This is a perfect set up for wasting energy. Radiant panels also direct the heat to the interior of the space and reduce or eliminate the excessive temperatures on outside walls and ceilings which result in significant energy savings.

Radiant Ceiling Heat provides unparalleled comfort with minimal panel coverage and maximum efficiency to help lower home heating costs. Calorique Perfectly Warm Radiant Ceiling Heat is a quiet, low maintenance solution with no moving parts to maintain.

Myth No.7: Ceiling heat must make your head hot.

Not true. You may be thinking of high intensity heaters. Radiant ceiling heat panels are low mass heat emitters, meaning they respond quickly to changes in room conditions. Under normal conditions Radiant Ceiling Heat Panels do not heat the air to an uncomfortable level such as forced air systems.

Myth No.8: Radiant Ceiling Heat is a cluttered and complex solution

Panels are designed to easily fit standard joist spacing of 12”, 16” and 24” on center. This primary out-of-sight heating system provides uniform heat distribution and is easily installed by stapling to the underside of joists. Calorique Perfectly Warm Radiant Ceiling Heat is a simple and affordable whole house heating solution that can be powered from renewable solar energy. It is an ultra-high, 100% energy efficient system. Calorique Perfectly Warm Radiant Ceiling Heat is available in rolls of panels, or individual panels and can be simply cut to length at most any jobsite.

Myth No. 9: Ceiling Heat is Not Safe

Calorique Perfectly Warm Ceiling Heat is UL Listed, EMC compliant and controlled by a GFCI Thermostat. Installations of Calorique Ceiling Heat from over 30 years ago are still safely operating and efficiently functioning today. Airborne dust, pollen, and germs are reduced by the elimination of blowing air caused by other conventional heating systems

Myth No. 10: Radiant Ceilings Suffer from the “”Shadow Affect”

Some people believe that radiant ceilings suffer from “shadowing affects”. The misconception is that legs under tables or desks are shielded from the radiant heat creating cold spots. Actually, the invisible heat rays emit from the heated surface to other cooler unheated surfaces. This bouncing of energy creates very even overall heat distribution. Shadowing for radiant ceilings or floors is negligible and non-existent in most cases.

FAQ’s

1. What is the Calorique Radiant Ceiling Heating System?
Low heat density panels that are installed by stapling to the underside of ceiling joists. Panels provide primary or supplementary heat.

2. Can Calorique Ceiling Heat provide primary heating for an entire house?
Yes.

3. Can BTU’s / Hour be converted to Watts required to Heat a Space?
Yes. Multiply total number of BTU’s/HOUR by 0.29307107

4. What is the product warranty?
25 Year Limited Warranty

5. Can Calorique Perfectly Warm Ceiling Heat be installed as “retrofit” to an existing ceiling?
Yes, this is a very common application for the product.

6. Is Calorique Perfectly Warm Ceiling heat safe?
Yes, UL Listed, EMC compliant and controlled with a GFCI Thermostat.

7. Does Calorique Perfectly Warm Radiant Ceiling Heat make your head hot?
No. Our heating panels are low mass heat emitters unlike high intensity heaters.

8. Is Calorique Perfectly Warm Ceiling heat a new technology?
Not new- our Ceiling Heat was introduced in 1980 and installed in homes worldwide since 1980 and still operating flawlessly today.

9. Is Radiant Ceiling Heat efficient?
Calorique’s Ceiling Heat is 100% efficient with no parasitic loss. According to the Department of Energy “… Radiant Heat is more efficient than baseboard heating because it eliminates duct losses”

10. Can Calorique Ceiling Heat be powered by a solar energy system?
Yes.

11. How is Calorique Perfectly Warm Ceiling Heat maintained?
Calorique is 100% maintenance free, and one of its best attributes is it has no moving parts.

12. Is Calorique Perfectly Warm Ceiling Heat difficult to install?
Not at all- it’s easily stapled up to underside of ceiling joists.

13. Do you need an electrician to install?
This equipment must be installed by qualified personnel familiar with the construction and operation of the apparatus and the risks involved.

14. How many heating panels are included in a single roll of material?
250 panels
